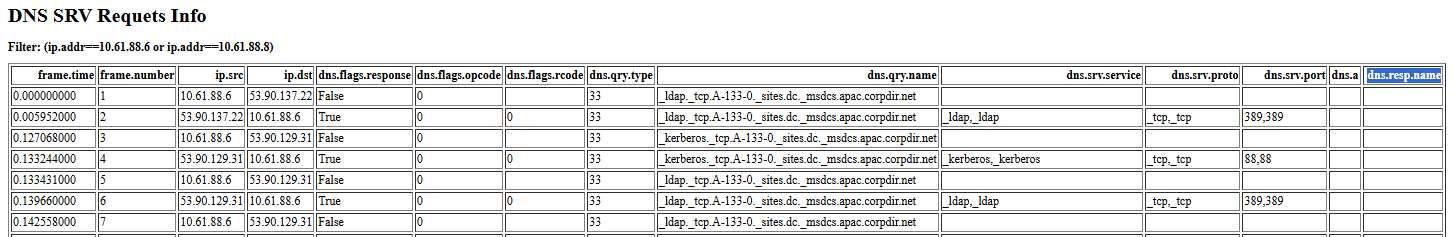

DNS SRV Requests Info
DNS SRV Requests Info
1. DNS SRV Request (client → DNS server)
When a client (e.g. Windows workstation joining a domain) wants to find an LDAP server, it sends a DNS query like:
Queries
_ldap._tcp.example.com: type SRV, class IN
dns.qry.type = SRV (33)
dns.qry.name = _ldap._tcp.example.com
dns.srv.service = _ldap
dns.srv.proto = _tcp
Opcode = 0 (Standard query)
Rcode = unset (since it’s a request)
dns.qry.type = SRV (33) → asking for a service record
dns.qry.name = _ldap._tcp.example.com
dns.srv.service = _ldap (the service being requested)
dns.srv.proto = _tcp (protocol for LDAP)
This means:
“Tell me which LDAP servers are available for example.com over TCP.”
2. DNS SRV Response (DNS server → client)
The DNS server replies with the list of LDAP servers:
Answers
_ldap._tcp.example.com: type SRV, class IN
Priority: 0
Weight: 100
Port: 389
Target: dc1.example.com
dns.srv.service = _ldap
dns.srv.proto = _tcp
dns.srv.port = 389
dns.resp.name = dc1.example.com
Additional Records
dc1.example.com: type A, addr 192.0.2.10
dns.a = 192.0.2.10
Opcode = 0 (Standard query)
Rcode = 0 (NoError → successful resolution)
dns.srv.port = 389 (standard LDAP port; could be 636 for LDAPS)
dns.resp.name = dc1.example.com (hostname of the LDAP server)
dns.a = 192.0.2.10 (IPv4 address of the target server)
3. Summary of Fields (when dns.srv.service = ldap)
Field Example Value Meaning
Opcode 0 Standard DNS query
Rcode 0 (NoError) Query succeeded
dns.qry.type SRV (33) Asking for a service record
dns.qry.name _ldap._tcp.example.com Service + protocol + domain
dns.srv.service _ldap Service requested (LDAP)
dns.srv.proto _tcp Protocol (TCP for LDAP)
dns.srv.port 389 Port of the LDAP service
dns.resp.name dc1.example.com Target host providing LDAP
dns.a 192.0.2.10 IP address of that host
So when you see dns.srv.service = ldap:
The client is trying to discover LDAP servers (usually domain controllers in Active Directory) via DNS SRV lookups, and the response tells it which hostnames, ports, and IPs to use.
let’s dive into the Active Directory–specific SRV queries where dns.srv.service = ldap. These are some of the most common SRV lookups you’ll see in Wireshark when a Windows client tries to find a Domain Controller (DC).
Why SRV is critical for AD
Active Directory relies on DNS SRV records to locate domain controllers and related services.
When a client joins/logs into a domain, it doesn’t know the DC’s IP — so it queries DNS for SRV records.
Common AD SRV Queries
1. _ldap._tcp.dc._msdcs.<domain>
Used to find all domain controllers for a given domain.
Example query:
dns.qry.name = _ldap._tcp.dc._msdcs.example.com
dns.srv.service = _ldap
dns.srv.proto = _tcp
dns.qry.type = SRV
The response contains one or more DC hostnames (targets).
2. _ldap._tcp.<site>._sites.dc._msdcs.<domain>
Used to find DCs in a specific AD site (site-aware logon).
Example query:
dns.qry.name = _ldap._tcp.Default-First-Site-Name._sites.dc._msdcs.example.com
Ensures clients prefer local DCs for authentication.
3. _ldap._tcp.gc._msdcs.<forest-root>
Used to find Global Catalog (GC) servers.
Example query:
dns.qry.name = _ldap._tcp.gc._msdcs.example.com
Global Catalog servers are needed for cross-domain searches and logons.
Example SRV Response for AD
Answers
_ldap._tcp.dc._msdcs.example.com: type SRV, class IN
Priority: 0
Weight: 100
Port: 389
Target: dc1.example.com
dns.srv.service = _ldap
dns.srv.proto = _tcp
dns.srv.port = 389
dns.resp.name = dc1.example.com
_ldap._tcp.dc._msdcs.example.com: type SRV, class IN
Priority: 0
Weight: 100
Port: 389
Target: dc2.example.com
dns.srv.service = _ldap
dns.srv.proto = _tcp
dns.srv.port = 389
dns.resp.name = dc2.example.com
Additional Records
dc1.example.com: type A, addr 192.0.2.10
dns.a = 192.0.2.10
dc2.example.com: type A, addr 192.0.2.11
dns.a = 192.0.2.11
Field Mapping (LDAP in AD SRV)
Field Example Value Meaning
Opcode 0 Standard query
Rcode 0 (NoError) Query succeeded
dns.qry.type SRV (33) Query type
dns.qry.name _ldap._tcp.dc._msdcs.example.com “Find LDAP DCs”
dns.srv.service _ldap LDAP service
dns.srv.proto _tcp TCP protocol
dns.srv.port 389 LDAP service port
dns.resp.name dc1.example.com, dc2.example.com DC hostnames
dns.a 192.0.2.10, 192.0.2.11 DC IP addresses
In short:
When dns.srv.service = ldap in an AD environment, it usually means the client is looking for domain controllers or global catalog servers. The SRV records tell the client which DCs exist, which port to use (389 or 636), and their hostnames/IPs.
