NFS4 Operation Errors

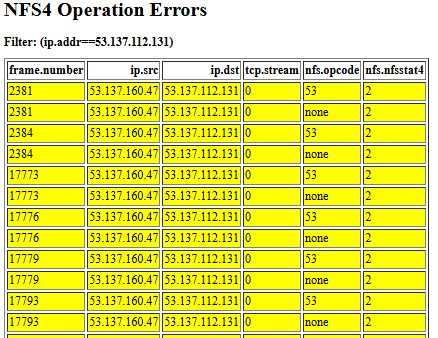

NFS4: Operation Errors
Scan Type: Errors, Severity: High
Column value nfs.opcode: operation number
Column value nfs.nfsstat4: returned result
Network File System (NFS) Version 4 Protocol
https://www.rfc-editor.org/rfc/rfc7530
For the NFSv4 RPC program, there are two traditional RPC procedures: NULL and COMPOUND. All other functionality is defined as a set of operations, and these operations are defined in normal XDR/RPC syntax and semantics. However, these operations are encapsulated within the COMPOUND procedure. This requires that the client combine one or more of the NFSv4 operations into a single request.
NFSv4 Procedures
Procedure 0: NULL - No Operation
Procedure 1: COMPOUND - COMPOUND Operations
NFSv4 Operations
Operation 3: ACCESS - Check Access Rights
Operation 4: CLOSE - Close File
Operation 5: COMMIT - Commit Cached Data
Operation 6: CREATE - Create a Non-regular File Object
Operation 7: DELEGPURGE - Purge Delegations Awaiting Recovery
Operation 8: DELEGRETURN - Return Delegation
Operation 9: GETATTR - Get Attributes
Operation 10: GETFH - Get Current Filehandle
Operation 11: LINK - Create Link to a File
Operation 12: LOCK - Create Lock
Operation 13: LOCKT - Test for Lock
Operation 14: LOCKU - Unlock File
Operation 15: LOOKUP - Look Up Filename
Operation 16: LOOKUPP - Look Up Parent Directory
Operation 17: NVERIFY - Verify Difference in Attributes
Operation 18: OPEN - Open a Regular File
Operation 19: OPENATTR - Open Named Attribute Directory
Operation 20: OPEN_CONFIRM - Confirm Open
Operation 21: OPEN_DOWNGRADE - Reduce Open File Access
Operation 22: PUTFH - Set Current Filehandle
Operation 23: PUTPUBFH - Set Public Filehandle
Operation 24: PUTROOTFH - Set Root Filehandle
Operation 25: READ - Read from File
Operation 26: READDIR - Read Directory
Operation 27: READLINK - Read Symbolic Link
Operation 28: REMOVE - Remove File System Object
Operation 29: RENAME - Rename Directory Entry
Operation 30: RENEW - Renew a Lease
Operation 31: RESTOREFH - Restore Saved Filehandle
Operation 32: SAVEFH - Save Current Filehandle
Operation 33: SECINFO - Obtain Available Security
Operation 34: SETATTR - Set Attributes
Operation 35: SETCLIENTID - Negotiate Client ID
Operation 36: SETCLIENTID_CONFIRM - Confirm Client ID
Operation 37: VERIFY - Verify Same Attributes
Operation 38: WRITE - Write to File
Operation 39: RELEASE_LOCKOWNER - Release Lock-Owner State
Operation 10044: ILLEGAL - Illegal Operation
Error Values
NFS error numbers are assigned to failed operations within a COMPOUND or CB_COMPOUND request. A COMPOUND request contains a number of NFS operations that have their results encoded in sequence in a COMPOUND reply. The results of successful operations will consist of an NFS4_OK status followed by the encoded results of the operation. If an NFS operation fails, an error status will be entered in the reply, and the COMPOUND request will be terminated.
Error Definitions
+-----------------------------+--------+-------------------+
| Error | Number | Description |
+-----------------------------+--------+-------------------+
| NFS4_OK | 0 | Section 13.1.3.1 |
| NFS4ERR_ACCESS | 13 | Section 13.1.6.1 |
| NFS4ERR_ADMIN_REVOKED | 10047 | Section 13.1.5.1 |
| NFS4ERR_ATTRNOTSUPP | 10032 | Section 13.1.11.1 |
| NFS4ERR_BADCHAR | 10040 | Section 13.1.7.1 |
| NFS4ERR_BADHANDLE | 10001 | Section 13.1.2.1 |
| NFS4ERR_BADNAME | 10041 | Section 13.1.7.2 |
| NFS4ERR_BADOWNER | 10039 | Section 13.1.11.2 |
| NFS4ERR_BADTYPE | 10007 | Section 13.1.4.1 |
| NFS4ERR_BADXDR | 10036 | Section 13.1.1.1 |
| NFS4ERR_BAD_COOKIE | 10003 | Section 13.1.1.2 |
| NFS4ERR_BAD_RANGE | 10042 | Section 13.1.8.1 |
| NFS4ERR_BAD_SEQID | 10026 | Section 13.1.8.2 |
| NFS4ERR_BAD_STATEID | 10025 | Section 13.1.5.2 |
| NFS4ERR_CB_PATH_DOWN | 10048 | Section 13.1.12.1 |
| NFS4ERR_CLID_INUSE | 10017 | Section 13.1.10.1 |
| NFS4ERR_DEADLOCK | 10045 | Section 13.1.8.3 |
| NFS4ERR_DELAY | 10008 | Section 13.1.1.3 |
| NFS4ERR_DENIED | 10010 | Section 13.1.8.4 |
| NFS4ERR_DQUOT | 69 | Section 13.1.4.2 |
| NFS4ERR_EXIST | 17 | Section 13.1.4.3 |
| NFS4ERR_EXPIRED | 10011 | Section 13.1.5.3 |
| NFS4ERR_FBIG | 27 | Section 13.1.4.4 |
| NFS4ERR_FHEXPIRED | 10014 | Section 13.1.2.2 |
| NFS4ERR_FILE_OPEN | 10046 | Section 13.1.4.5 |
| NFS4ERR_GRACE | 10013 | Section 13.1.9.1 |
| NFS4ERR_INVAL | 22 | Section 13.1.1.4 |
| NFS4ERR_IO | 5 | Section 13.1.4.6 |
| NFS4ERR_ISDIR | 21 | Section 13.1.2.3 |
| NFS4ERR_LEASE_MOVED | 10031 | Section 13.1.5.4 |
| NFS4ERR_LOCKED | 10012 | Section 13.1.8.5 |
| NFS4ERR_LOCKS_HELD | 10037 | Section 13.1.8.6 |
| NFS4ERR_LOCK_NOTSUPP | 10043 | Section 13.1.8.7 |
| NFS4ERR_LOCK_RANGE | 10028 | Section 13.1.8.8 |
| NFS4ERR_MINOR_VERS_MISMATCH | 10021 | Section 13.1.3.2 |
| NFS4ERR_MLINK | 31 | Section 13.1.4.7 |
| NFS4ERR_MOVED | 10019 | Section 13.1.2.4 |
| NFS4ERR_NAMETOOLONG | 63 | Section 13.1.7.3 |
| NFS4ERR_NOENT | 2 | Section 13.1.4.8 |
| NFS4ERR_NOFILEHANDLE | 10020 | Section 13.1.2.5 |
| NFS4ERR_NOSPC | 28 | Section 13.1.4.9 |
| NFS4ERR_NOTDIR | 20 | Section 13.1.2.6 |
| NFS4ERR_NOTEMPTY | 66 | Section 13.1.4.10 |
| NFS4ERR_NOTSUPP | 10004 | Section 13.1.1.5 |
| NFS4ERR_NOT_SAME | 10027 | Section 13.1.11.3 |
| NFS4ERR_NO_GRACE | 10033 | Section 13.1.9.2 |
| NFS4ERR_NXIO | 6 | Section 13.1.4.11 |
| NFS4ERR_OLD_STATEID | 10024 | Section 13.1.5.5 |
| NFS4ERR_OPENMODE | 10038 | Section 13.1.8.9 |
| NFS4ERR_OP_ILLEGAL | 10044 | Section 13.1.3.3 |
| NFS4ERR_PERM | 1 | Section 13.1.6.2 |
| NFS4ERR_RECLAIM_BAD | 10034 | Section 13.1.9.3 |
| NFS4ERR_RECLAIM_CONFLICT | 10035 | Section 13.1.9.4 |
| NFS4ERR_RESOURCE | 10018 | Section 13.1.3.4 |
| NFS4ERR_RESTOREFH | 10030 | Section 13.1.4.12 |
| NFS4ERR_ROFS | 30 | Section 13.1.4.13 |
| NFS4ERR_SAME | 10009 | Section 13.1.11.4 |
| NFS4ERR_SERVERFAULT | 10006 | Section 13.1.1.6 |
| NFS4ERR_SHARE_DENIED | 10015 | Section 13.1.8.10 |
| NFS4ERR_STALE | 70 | Section 13.1.2.7 |
| NFS4ERR_STALE_CLIENTID | 10022 | Section 13.1.10.2 |
| NFS4ERR_STALE_STATEID | 10023 | Section 13.1.5.6 |
| NFS4ERR_SYMLINK | 10029 | Section 13.1.2.8 |
| NFS4ERR_TOOSMALL | 10005 | Section 13.1.1.7 |
| NFS4ERR_WRONGSEC | 10016 | Section 13.1.6.3 |
| NFS4ERR_XDEV | 18 | Section 13.1.4.14 |
+-----------------------------+--------+-------------------+
Network File System (NFS) Version 4 Minor Version 1 Protocol
https://www.rfc-editor.org/rfc/rfc8881
NFSv4.1 Procedures
Procedure 0: NULL - No Operation
Procedure 1: COMPOUND - COMPOUND Operations
NFSv4.1 Operations
Operation 3: ACCESS - Check Access Rights
Operation 4: CLOSE - Close File
Operation 5: COMMIT - Commit Cached Data
Operation 6: CREATE - Create a Non-Regular File Object
Operation 7: DELEGPURGE - Purge Delegations Awaiting Recovery
Operation 8: DELEGRETURN - Return Delegation
Operation 9: GETATTR - Get Attributes
Operation 10: GETFH - Get Current Filehandle
Operation 11: LINK - Create Link to a File
Operation 12: LOCK - Create Lock
Operation 13: LOCKT - Test for Lock
Operation 14: LOCKU - Unlock File
Operation 15: LOOKUP - Lookup Filename
Operation 16: LOOKUPP - Lookup Parent Directory
Operation 17: NVERIFY - Verify Difference in Attributes
Operation 18: OPEN - Open a Regular File
Operation 19: OPENATTR - Open Named Attribute Directory
Operation 21: OPEN_DOWNGRADE - Reduce Open File Access
Operation 22: PUTFH - Set Current Filehandle
Operation 23: PUTPUBFH - Set Public Filehandle
Operation 24: PUTROOTFH - Set Root Filehandle
Operation 25: READ - Read from File
Operation 26: READDIR - Read Directory
Operation 27: READLINK - Read Symbolic Link
Operation 28: REMOVE - Remove File System Object
Operation 29: RENAME - Rename Directory Entry
Operation 31: RESTOREFH - Restore Saved Filehandle
Operation 32: SAVEFH - Save Current Filehandle
Operation 33: SECINFO - Obtain Available Security
Operation 34: SETATTR - Set Attributes
Operation 37: VERIFY - Verify Same Attributes
Operation 38: WRITE - Write to File
Operation 40: BACKCHANNEL_CTL - Backchannel Control
Operation 41: BIND_CONN_TO_SESSION - Associate Connection with Session
Operation 42: EXCHANGE_ID - Instantiate Client ID
Operation 43: CREATE_SESSION - Create New Session and Confirm Client ID
Operation 44: DESTROY_SESSION - Destroy a Session
Operation 45: FREE_STATEID - Free Stateid with No Locks
Operation 46: GET_DIR_DELEGATION - Get a Directory Delegation
Operation 47: GETDEVICEINFO - Get Device Information
Operation 48: GETDEVICELIST - Get All Device Mappings for a File System
Operation 49: LAYOUTCOMMIT - Commit Writes Made Using a Layout
Operation 50: LAYOUTGET - Get Layout Information
Operation 51: LAYOUTRETURN - Release Layout Information
Operation 52: SECINFO_NO_NAME - Get Security on Unnamed Object
Operation 53: SEQUENCE - Supply Per-Procedure Sequencing and Control
Operation 54: SET_SSV - Update SSV for a Client ID
Operation 55: TEST_STATEID - Test Stateids for Validity
Operation 56: WANT_DELEGATION - Request Delegation
Operation 57: DESTROY_CLIENTID - Destroy a Client ID
Operation 58: RECLAIM_COMPLETE - Indicates Reclaims Finished
Operation 10044: ILLEGAL - Illegal Operation
Error Definitions
Error Number Description
NFS4_OK 0 Section 15.1.3.1
NFS4ERR_ACCESS 13 Section 15.1.6.1
NFS4ERR_ATTRNOTSUPP 10032 Section 15.1.15.1
NFS4ERR_ADMIN_REVOKED 10047 Section 15.1.5.1
NFS4ERR_BACK_CHAN_BUSY 10057 Section 15.1.12.1
NFS4ERR_BADCHAR 10040 Section 15.1.7.1
NFS4ERR_BADHANDLE 10001 Section 15.1.2.1
NFS4ERR_BADIOMODE 10049 Section 15.1.10.1
NFS4ERR_BADLAYOUT 10050 Section 15.1.10.2
NFS4ERR_BADNAME 10041 Section 15.1.7.2
NFS4ERR_BADOWNER 10039 Section 15.1.15.2
NFS4ERR_BADSESSION 10052 Section 15.1.11.1
NFS4ERR_BADSLOT 10053 Section 15.1.11.2
NFS4ERR_BADTYPE 10007 Section 15.1.4.1
NFS4ERR_BADXDR 10036 Section 15.1.1.1
NFS4ERR_BAD_COOKIE 10003 Section 15.1.1.2
NFS4ERR_BAD_HIGH_SLOT 10077 Section 15.1.11.3
NFS4ERR_BAD_RANGE 10042 Section 15.1.8.1
NFS4ERR_BAD_SEQID 10026 Section 15.1.16.1
NFS4ERR_BAD_SESSION_DIGEST 10051 Section 15.1.12.2
NFS4ERR_BAD_STATEID 10025 Section 15.1.5.2
NFS4ERR_CB_PATH_DOWN 10048 Section 15.1.11.4
NFS4ERR_CLID_INUSE 10017 Section 15.1.13.2
NFS4ERR_CLIENTID_BUSY 10074 Section 15.1.13.1
NFS4ERR_COMPLETE_ALREADY 10054 Section 15.1.9.1
NFS4ERR_CONN_NOT_BOUND_TO_SESSION 10055 Section 15.1.11.6
NFS4ERR_DEADLOCK 10045 Section 15.1.8.2
NFS4ERR_DEADSESSION 10078 Section 15.1.11.5
NFS4ERR_DELAY 10008 Section 15.1.1.3
NFS4ERR_DELEG_ALREADY_WANTED 10056 Section 15.1.14.1
NFS4ERR_DELEG_REVOKED 10087 Section 15.1.5.3
NFS4ERR_DENIED 10010 Section 15.1.8.3
NFS4ERR_DIRDELEG_UNAVAIL 10084 Section 15.1.14.2
NFS4ERR_DQUOT 69 Section 15.1.4.2
NFS4ERR_ENCR_ALG_UNSUPP 10079 Section 15.1.13.3
NFS4ERR_EXIST 17 Section 15.1.4.3
NFS4ERR_EXPIRED 10011 Section 15.1.5.4
NFS4ERR_FBIG 27 Section 15.1.4.4
NFS4ERR_FHEXPIRED 10014 Section 15.1.2.2
NFS4ERR_FILE_OPEN 10046 Section 15.1.4.5
NFS4ERR_GRACE 10013 Section 15.1.9.2
NFS4ERR_HASH_ALG_UNSUPP 10072 Section 15.1.13.4
NFS4ERR_INVAL 22 Section 15.1.1.4
NFS4ERR_IO 5 Section 15.1.4.6
NFS4ERR_ISDIR 21 Section 15.1.2.3
NFS4ERR_LAYOUTTRYLATER 10058 Section 15.1.10.3
NFS4ERR_LAYOUTUNAVAILABLE 10059 Section 15.1.10.4
NFS4ERR_LEASE_MOVED 10031 Section 15.1.16.2
NFS4ERR_LOCKED 10012 Section 15.1.8.4
NFS4ERR_LOCKS_HELD 10037 Section 15.1.8.5
NFS4ERR_LOCK_NOTSUPP 10043 Section 15.1.8.6
NFS4ERR_LOCK_RANGE 10028 Section 15.1.8.7
NFS4ERR_MINOR_VERS_MISMATCH 10021 Section 15.1.3.2
NFS4ERR_MLINK 31 Section 15.1.4.7
NFS4ERR_MOVED 10019 Section 15.1.2.4
NFS4ERR_NAMETOOLONG 63 Section 15.1.7.3
NFS4ERR_NOENT 2 Section 15.1.4.8
NFS4ERR_NOFILEHANDLE 10020 Section 15.1.2.5
NFS4ERR_NOMATCHING_LAYOUT 10060 Section 15.1.10.5
NFS4ERR_NOSPC 28 Section 15.1.4.9
NFS4ERR_NOTDIR 20 Section 15.1.2.6
NFS4ERR_NOTEMPTY 66 Section 15.1.4.10
NFS4ERR_NOTSUPP 10004 Section 15.1.1.5
NFS4ERR_NOT_ONLY_OP 10081 Section 15.1.3.3
NFS4ERR_NOT_SAME 10027 Section 15.1.15.3
NFS4ERR_NO_GRACE 10033 Section 15.1.9.3
NFS4ERR_NXIO 6 Section 15.1.16.3
NFS4ERR_OLD_STATEID 10024 Section 15.1.5.5
NFS4ERR_OPENMODE 10038 Section 15.1.8.8
NFS4ERR_OP_ILLEGAL 10044 Section 15.1.3.4
NFS4ERR_OP_NOT_IN_SESSION 10071 Section 15.1.3.5
NFS4ERR_PERM 1 Section 15.1.6.2
NFS4ERR_PNFS_IO_HOLE 10075 Section 15.1.10.6
NFS4ERR_PNFS_NO_LAYOUT 10080 Section 15.1.10.7
NFS4ERR_RECALLCONFLICT 10061 Section 15.1.14.3
NFS4ERR_RECLAIM_BAD 10034 Section 15.1.9.4
NFS4ERR_RECLAIM_CONFLICT 10035 Section 15.1.9.5
NFS4ERR_REJECT_DELEG 10085 Section 15.1.14.4
NFS4ERR_REP_TOO_BIG 10066 Section 15.1.3.6
NFS4ERR_REP_TOO_BIG_TO_CACHE 10067 Section 15.1.3.7
NFS4ERR_REQ_TOO_BIG 10065 Section 15.1.3.8
NFS4ERR_RESTOREFH 10030 Section 15.1.16.4
NFS4ERR_RETRY_UNCACHED_REP 10068 Section 15.1.3.9
NFS4ERR_RETURNCONFLICT 10086 Section 15.1.10.8
NFS4ERR_ROFS 30 Section 15.1.4.11
NFS4ERR_SAME 10009 Section 15.1.15.4
NFS4ERR_SHARE_DENIED 10015 Section 15.1.8.9
NFS4ERR_SEQUENCE_POS 10064 Section 15.1.3.10
NFS4ERR_SEQ_FALSE_RETRY 10076 Section 15.1.11.7
NFS4ERR_SEQ_MISORDERED 10063 Section 15.1.11.8
NFS4ERR_SERVERFAULT 10006 Section 15.1.1.6
NFS4ERR_STALE 70 Section 15.1.2.7
NFS4ERR_STALE_CLIENTID 10022 Section 15.1.13.5
NFS4ERR_STALE_STATEID 10023 Section 15.1.16.5
NFS4ERR_SYMLINK 10029 Section 15.1.2.8
NFS4ERR_TOOSMALL 10005 Section 15.1.1.7
NFS4ERR_TOO_MANY_OPS 10070 Section 15.1.3.11
NFS4ERR_UNKNOWN_LAYOUTTYPE 10062 Section 15.1.10.9
NFS4ERR_UNSAFE_COMPOUND 10069 Section 15.1.3.12
NFS4ERR_WRONGSEC 10016 Section 15.1.6.3
NFS4ERR_WRONG_CRED 10082 Section 15.1.6.4
NFS4ERR_WRONG_TYPE 10083 Section 15.1.2.9
NFS4ERR_XDEV 18 Section 15.1.4.12
